Conveyor roller tracks
Roller tracks are available in individual lengths of up to 6000 mm.
All part lengths are available and if possible should be divisible by 25.
Installation with M8 screw and securing ring.
If not ordered otherwise, roller track 082.000 should be installed in the lower series of holes.

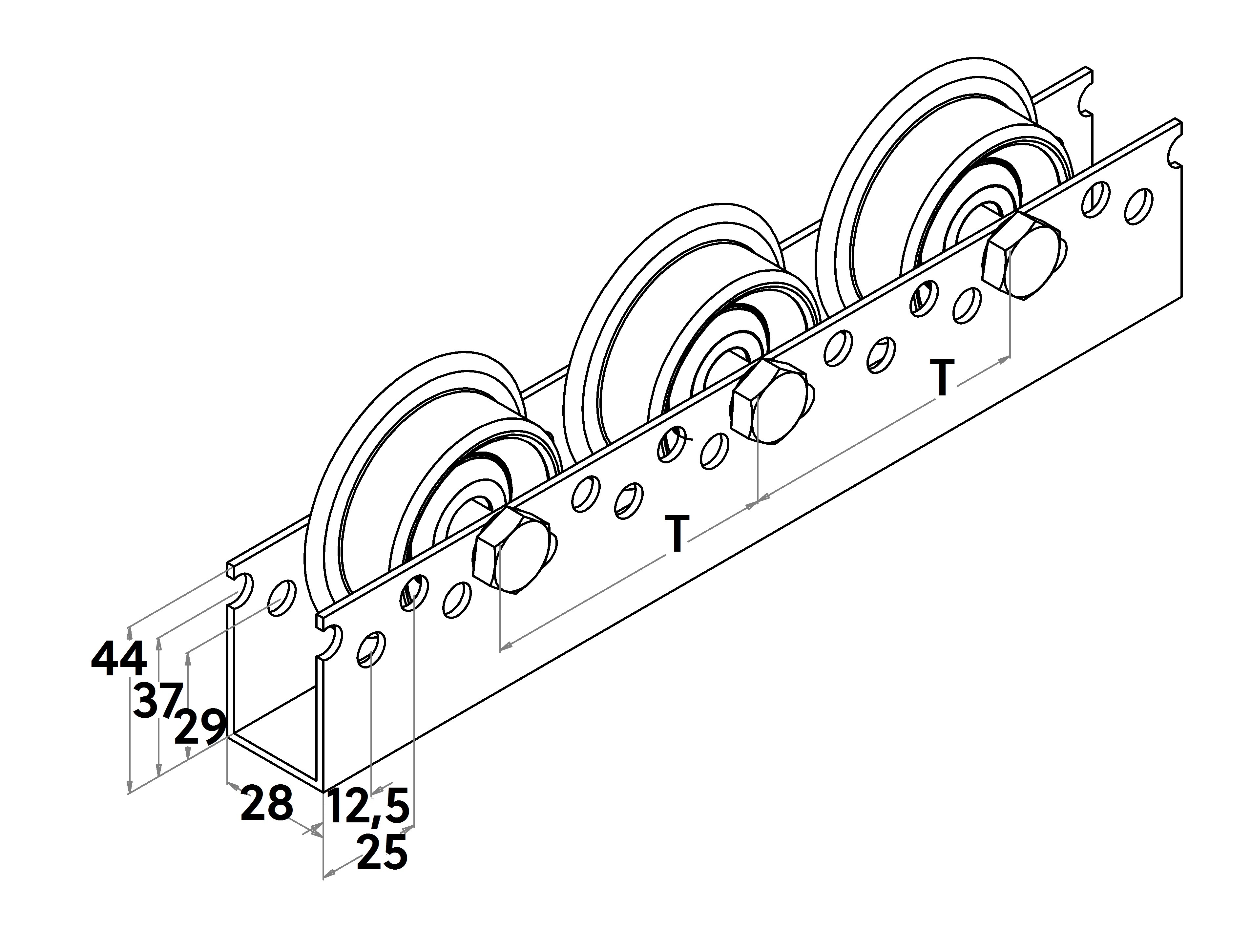

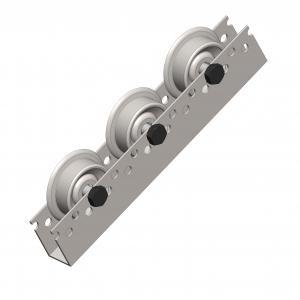

Flange roller 082.100 will be installed in the upper series of holes.
Smallest division
50 mm: for rollers
75 mm: for flange rollers
Step size of 25 mm
Ordering example: RS 082.000/100/4000
| Designation | Roller tracks | Separation | Length |
| x | y | z | |
| RS | 082.000 | 100 | 4000 |

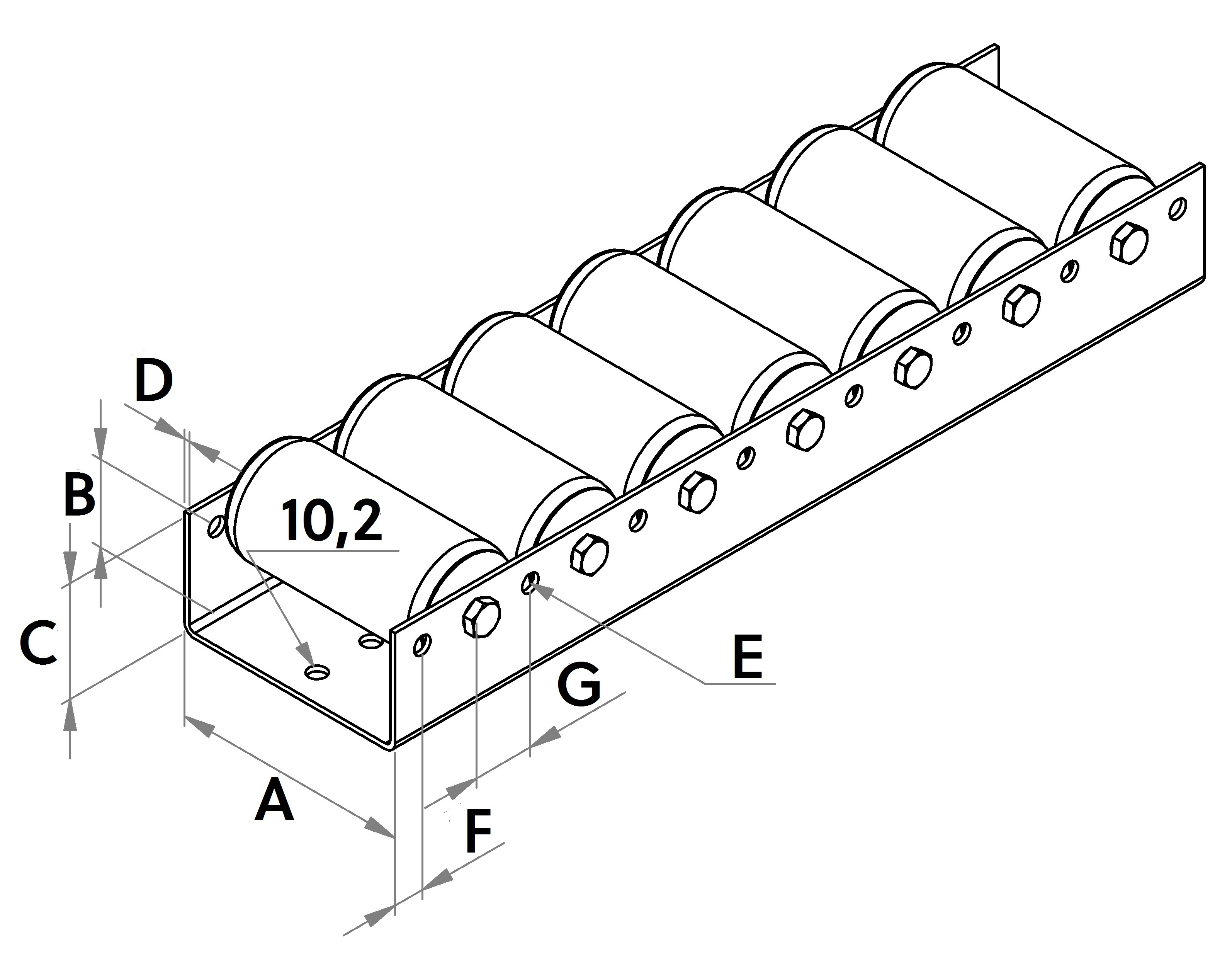

| Version | Dimensioning | Total height (mm) | ||||||
| A (mm) | B (mm) | C (mm) | D (mm) | ∅ E (mm) | F (mm) | G (mm) | ||
| TRS 052 | 58 | 40 | 50 | 2.5 | 8.2 | 16.5 | 33.33 | 65 |
| TRS 074 | 80 | 42 | 55 | 3.0 | 8.2 | 13.0 | 26.00 | 67 |
| TRS 124 | 130 | 50 | 65 | 3.0 | 10.2 | 16.5 | 33.33 | 80 |
| TRS 052b | 58 | 40 | 50 | 2.5 | 8.2 | 16.5 | 33.33 | 76 |
| TRS 074b | 80 | 42 | 55 | 3.0 | 8.2 | 13.0 | 26.00 | 78 |
Carrier roller tracks (with or without flange) are available in individual lengths up to 6000 mm.
All part lengths available.
Division upon assembly:
Carrier rollers EL 52 and 124 mm: 66; 100; 133; ……
Carrier rollers EL 74 mm: 52; 78; 104; ……
Possible partial steps are:
Carrier rollers EL 52 and 124 mm: 33 mm
Carrier rollers EL 74 mm: 26 mm
Installation with M8 screw and securing ring.
Ordering example: TRS 074/104/55x80x55/3000
| Designation | Clamping length | Separation | U profile | Individual length |
| EL | y | u | z | |
| TRS | 074 | 104 | 55x80x55 | 3000 |
Technical data for steel or roller tracks

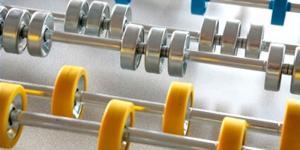

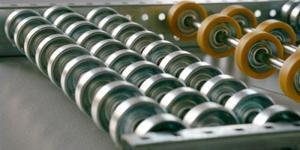

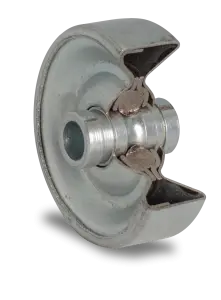

Steel rollers
Housing and lid: Steel, electrogalvanized
Hub: Steel, hardened and electrogalvanized
Running shells: Steel
Balls: High-carbon steel, plastic or stainless steel, hardened
Plastic rollers
Housing: PP, in various colours (Standard RAL5017 – Traffic blue)
Hub and cage: PA, same colour as housing
Balls: High-carbon steel and stainless steel
Plastic (POM) and steel rollers can be supplied slightly lubricated or dry.

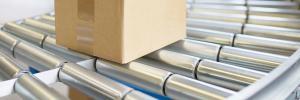

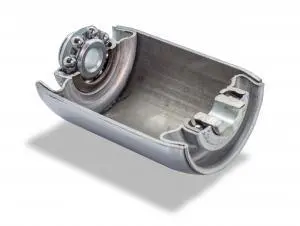

Technical data for carrier roller tracks
Separation
The carrier roller distance is calculated by taking the smallest base dimension of the conveyed material and dividing by three. This ensures that the conveyed material rests on at least three rollers.
Load
Load-bearing capacities of at least 150 kg per carrier roller can be implemented.
Conveyance speed
The recommended conveyance speed is 2 m/s.
Temperature
Carrier rollers can be used in a temperature range of -30°C to 100°C. For use at high temperatures, high-temperature grease must be used with roller carrier bearings.

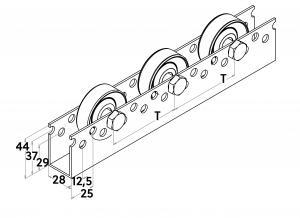

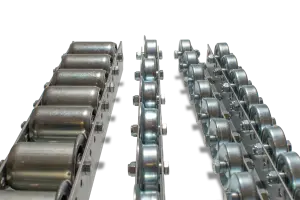

Structure of steel or roller tracks

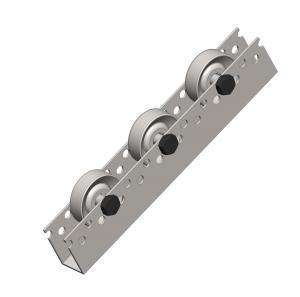

Schulz steel or roller tracks consist of a cold-formed Sendzimir galvanised steel profile and steel or plastic rollers. The profile has two series of holes on the side at different heights.
The construction of the U-profile allows Schulz roller tracks to be secured with M8 screws in a pattern of 50 mm, 75 mm, 100 mm, etc. Several rollers can be secured next to one another in one, two, three or more tracks. The rollers can also be offset to one another and combined in different versions.

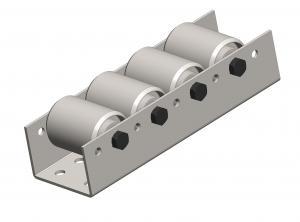

Structure of carrier roller tracks
The Schulz carrier roller tracks consists of a Senzimir zinc plated U-profile. These profiles are equipped with carrier rollers Ø 50 mm or Ø 60 mm.
Series of holes in the base serve to secure this track to a substructure.
Application of steel or roller tracks
Schulz steel or roller tracks are used in/for:
• Push-through rack storage systems
• Guide tracks, side deflector
• Carrier rails in conveyance systems
• Rolling tracks for linking two work stations
• and more….

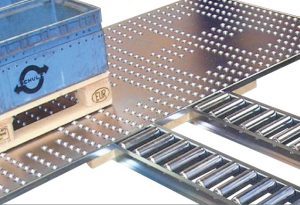

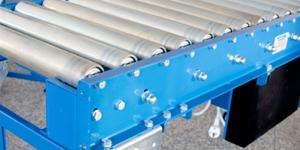

Application of roller carrier tracks
Schulz steel or roller tracks are used in/for:
• Push-through rack storage systems
• Transporting pallets
• Transfer system between several workstations
• Guides for drive belts
• and more….
Download “Lieferprogramm Schienen” Flyer_Schienen.pdf – Downloaded 7020 times – 1.61 MB
In order to display and read the 3D PDF, you will need Acrobat Reader with an activated 3D function! Subject to technical changes and errors excepted!
